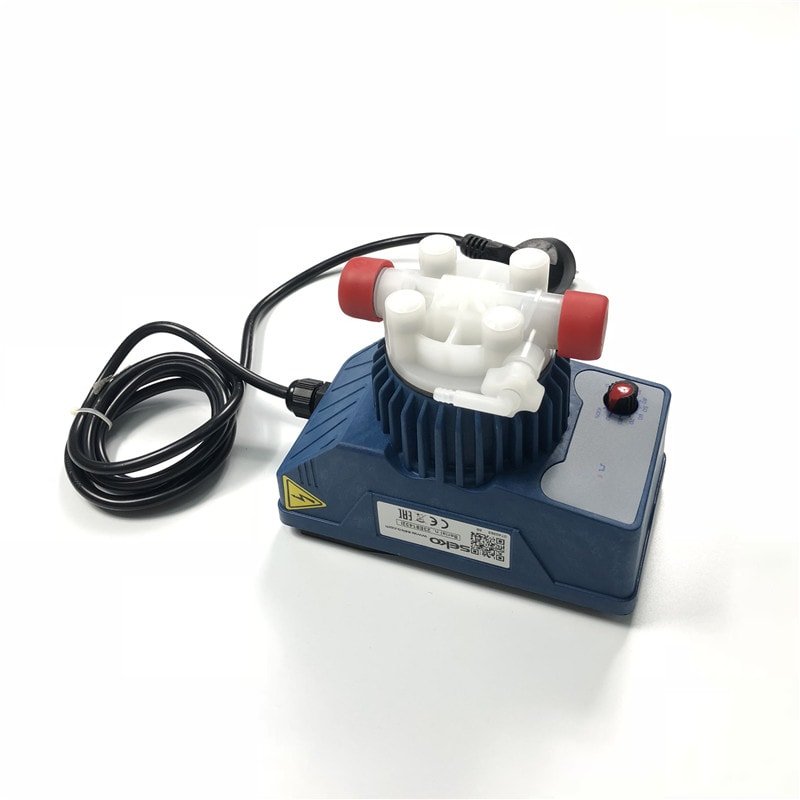

Kompact is a simple yet reliable series of micro-processor based analogue solenoid dosing pumps. It is built with the superior components you expect from a SEKO product, including ceramic ball valves, PTFE diaphragm and PVDF-T pump head (PVDF optional).
AMS200 SEKO Dosing pump
Kompact series
Kompact is a simple yet reliable series of micro-processor based analogue solenoid dosing pumps.
Protection degree: IP65
A versatile, multi-model solution within the SEKO solenoid dosing pumps range, the wall-mounted Kompact series is ideal for cost-critical applications with small delivery requirements such as chemical dosing systems for swimming pools.
Among the energy-saving features of the Kompact chemical dosing pumps range is a stabilized multi power supply, which draws the precise quantity of power required to activate the pump. This optimizes efficiency and ensures power supply fluctuations do not jeopardise performance.
Kompact is built with the superior components you expect from a SEKO product, including ceramic ball valves, PTFE diaphragm and PVDF-T pump head (PVDF optional). This delivers exceptional chemical compatibility with wetted parts for outstanding life expectancy and reduced maintenance requirement.
| Model | Pressure
(Bar) |
Flow Rate
(L/H) |
Connections
In/Out(mm) |
Max frequency
(n/min) |
GW
(Kg) |
Packing size
L*W*H(mm) |
| 200 | 3 | 10 | 4 / 6 | 160 |
2.5
|
295*195*195 |
| 5 | 8 | |||||
| 9 | 2 | |||||
| 201 | 1 | 7 | 4 / 6 | 160 |
| Liquid contacted materials | TYPE | PUMP HEAD | VALVE BALL | SEALS | DIAPHRAGM |
| P | PVDF | ceramic | FPM/EPDM | PTFE |
| Hull | Material | Protection degree | Electricity supply | AMS:230Vac,50HZ;AML/AMC/AMM:100-240Vac,50/60HZ |
| PP | IP65 | Power:12 watt |
| AMS | analog | Analog dosing pump with constant flow rate, manually adjustable |
| AML | Analog dosing pump with constant flow rate, manually adjustable, two frequency range 0-20% (P position), 0-100% (C position) of max flow rate, level control input | |
| AMC | digital | Analog dosing pump with two frequency ranges: constant flow rate (manually adjustable) and proportional flow rate according to an external digital (water meter) signal, Division mode 4:1, level control input |
| AMM | Analog dosing pump with two frequency ranges: constant flow rate (manually adjustable) and proportional flow rate according to an external analog (4-20mA) signal, level control input |
