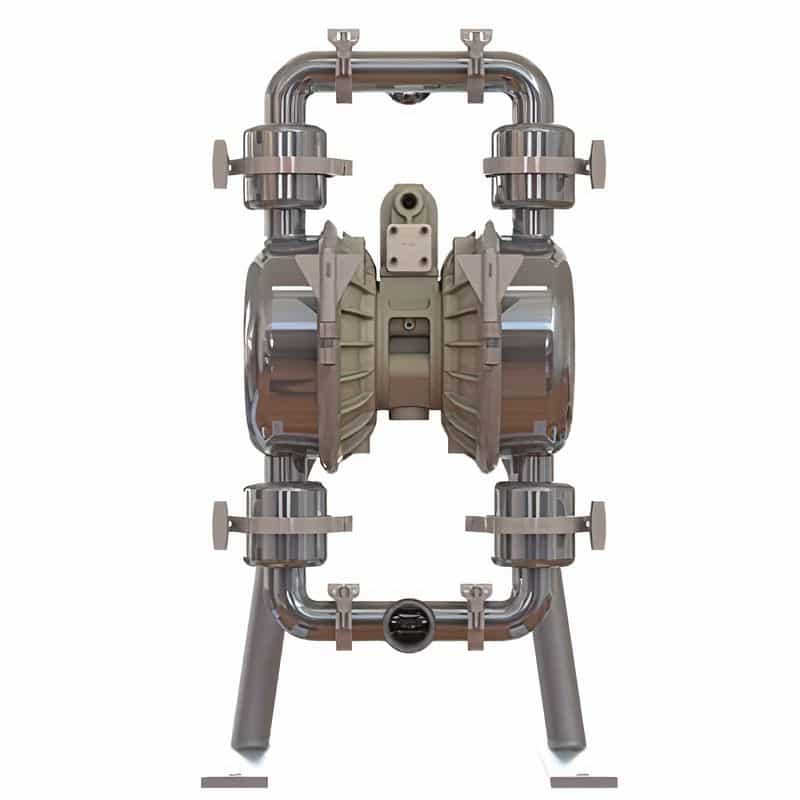

The F15C and F20C Metallic AODD Ball Valve Pumps from Sandpiper Pump are FDA-compliant and EC 1935 certified for food-contacting materials.
F15C
| Flow Rate | 0-86 gpm (325.5 lpm) |
| Port Size Suction Discharge |
1½” Tri-Clamp 1½” Tri-Clamp |
| Air Inlet | ½” NPT |
| Air Exhaust | ¾” NPT |
| Suction Lift Dry Wet |
15′ (4.57 m) 25′ (7.62 m) |
| Max Solid Size (Diameter) | ⅜” (9.5 mm) |
| Max Noise Level | 101 dB(A) |
| Shipping Weight Stainless Steel |
75 lbs (34 kg) |
F20C
| Flow Rate | 0-179 gpm (677 lpm) |
| Port Size Suction Discharge |
2″ Tri-Clamp 2″ Tri-Clamp |
| Air Inlet | ½” NPT |
| Air Exhaust | 1″ NPT |
| Suction Lift Dry Wet |
15′ (4.6 m) 32′ (9.8 m) |
| Max Solid Size (Diameter) | ⅝” (15.8 mm) |
| Max Noise Level | 98 dB(A) |
| Shipping Weight Stainless Steel |
125 lbs (56.7 kg) |
F15C
F20C
